Decoding Cellular Signaling Networks: PI3K/AKT, MAPK/ERK, JAK/STAT and Wnt Pathways

October 30, 2026 by
Decoding Cellular Signaling Networks: PI3K/AKT, MAPK/ERK, JAK/STAT and Wnt Pathways
Administrator

The Molecular Language of Cellular Communication

Cellular behavior is governed by complex communication systems that allow cells to detect external signals, interpret molecular information, and generate appropriate biological responses. These processes depend on interconnected signaling pathways that regulate essential functions such as proliferation, differentiation, survival, metabolism, and tissue organization.

Among the most extensively investigated signaling networks are the PI3K/AKT, MAPK/ERK, JAK/STAT, and Wnt pathways. Each operates through distinct molecular components, yet their activities frequently overlap, creating regulatory networks that influence cellular physiology.

Understanding these pathways provides important insights into the molecular mechanisms underlying development, tissue maintenance, immune regulation, and reproductive biology.

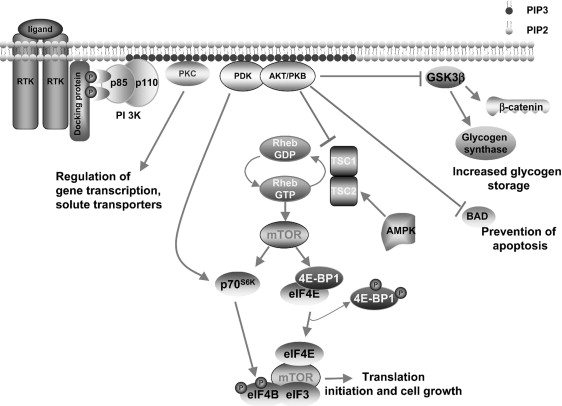

1. PI3K/AKT: Coordinating Cell Survival and Metabolic Activity

The phosphoinositide 3-kinase (PI3K)/AKT pathway is a major intracellular signaling system involved in cell survival, growth, metabolism, and proliferation.

Its activation frequently begins when extracellular growth factors bind to receptor tyrosine kinases (RTKs), triggering the recruitment and activation of PI3K at the plasma membrane.

Activated PI3K converts phosphatidylinositol-4,5-bisphosphate (PIP2) into phosphatidylinositol-3,4,5-trisphosphate (PIP3). This lipid messenger facilitates the recruitment of proteins containing pleckstrin homology domains, including AKT and PDK1.

PDK1 and mTORC2 contribute to AKT activation through phosphorylation at distinct regulatory sites. Once activated, AKT regulates numerous downstream targets involved in cellular survival, protein synthesis, glucose metabolism, and apoptosis.

One important downstream regulator is the mechanistic target of rapamycin (mTOR), which integrates nutrient availability, growth factor signals, and metabolic conditions to coordinate cellular growth.

The PI3K/AKT pathway therefore represents a central molecular connection between extracellular information and intracellular metabolic adaptation.

2. MAPK/ERK: Translating External Signals into Cellular Responses

The mitogen-activated protein kinase (MAPK)/extracellular signal-regulated kinase (ERK) pathway is another fundamental signaling network involved in cellular proliferation, differentiation, migration, and survival.

Its activation commonly begins with the binding of growth factors to receptor tyrosine kinases. This interaction promotes the recruitment of adaptor proteins, particularly GRB2 and SOS, which facilitate the activation of RAS.

RAS subsequently activates RAF kinases, initiating a phosphorylation cascade involving MEK1/2 and ERK1/2.

Activated ERK can translocate into the nucleus, where it phosphorylates transcription factors and other regulatory proteins. These molecular events influence gene expression and modify cellular responses to environmental signals.

The biological outcome of MAPK/ERK activation depends on several factors, including signal intensity, duration, cellular context, and interactions with other pathways.

In reproductive biology, MAPK signaling contributes to processes such as cell differentiation, follicular development, and the regulation of cellular activities within reproductive tissues.

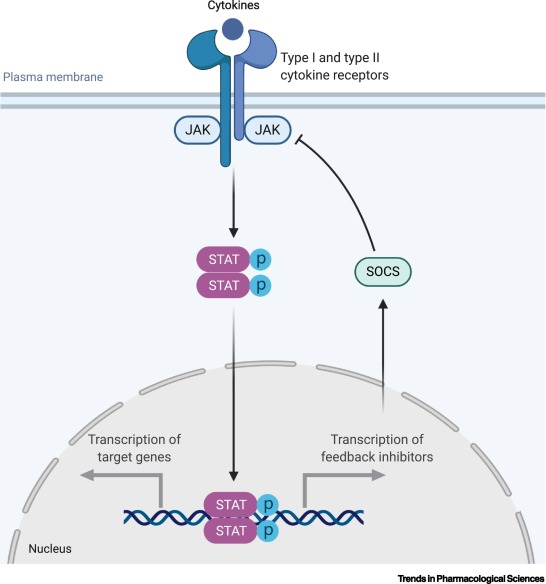

3. JAK/STAT: Connecting Extracellular Cytokines to Gene Expression

The Janus kinase/signal transducer and activator of transcription (JAK/STAT) pathway provides a relatively direct mechanism through which extracellular cytokines and growth factors regulate gene expression.

The process begins when a cytokine binds to its corresponding cell-surface receptor. Receptor engagement promotes conformational changes or receptor association, allowing receptor-associated JAK proteins to become activated through phosphorylation.

Activated JAKs phosphorylate specific tyrosine residues on the receptor, creating docking sites for STAT proteins.

STAT proteins are subsequently recruited and phosphorylated. Following phosphorylation, they form dimers, translocate into the nucleus, and interact with specific DNA regulatory sequences to influence transcription.

This pathway participates in numerous biological processes, including immune regulation, hematopoiesis, cellular differentiation, and inflammatory responses.

Its activity is controlled by several regulatory mechanisms, including suppressors of cytokine signaling (SOCS), protein inhibitors of activated STAT (PIAS), and protein tyrosine phosphatases.

These regulatory systems help maintain appropriate signaling intensity and prevent excessive or prolonged cellular responses.

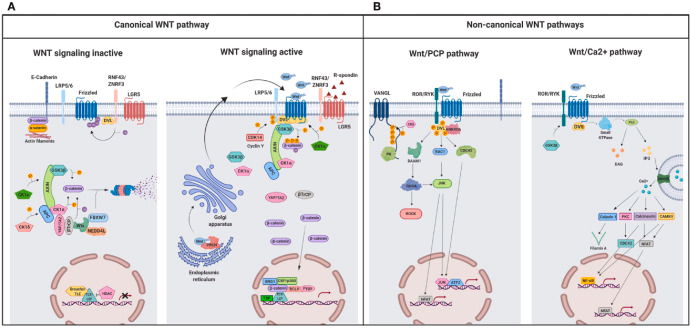

4. Wnt Signaling: Regulating Development and Cellular Organization

Wnt signaling is an evolutionarily conserved communication system with important functions in embryonic development, tissue maintenance, stem cell regulation, and cellular differentiation.

The pathway is generally divided into canonical and non-canonical signaling mechanisms.

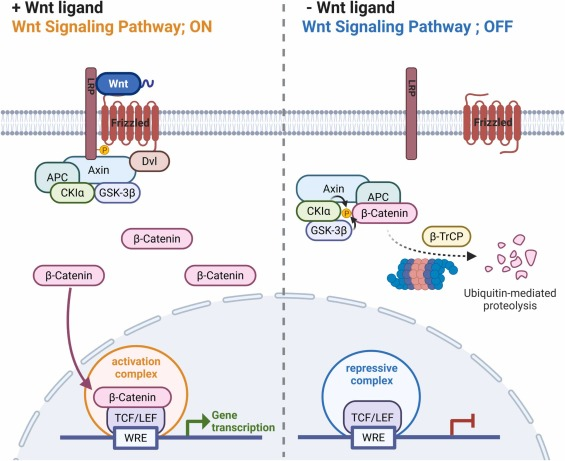

Canonical Wnt/β-catenin signaling

In the absence of Wnt ligands, β-catenin is continuously regulated by a destruction complex composed of proteins including AXIN, APC, GSK3β, and CK1.

This complex promotes β-catenin phosphorylation and subsequent degradation, limiting its accumulation within the cytoplasm.

When Wnt ligands bind to Frizzled receptors and LRP5/6 co-receptors, the destruction complex is inhibited or reorganized. As a result, β-catenin becomes stabilized and accumulates in the cytoplasm before entering the nucleus.

Within the nucleus, β-catenin interacts with TCF/LEF transcription factors to regulate genes involved in proliferation, differentiation, and tissue development.

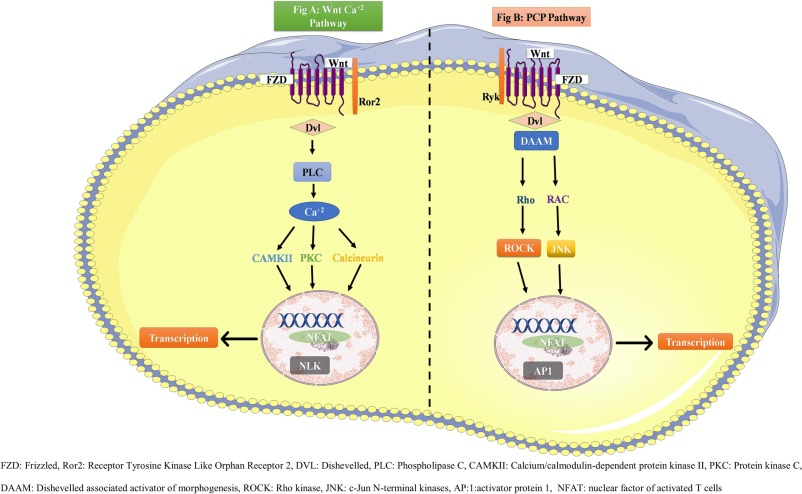

Non-canonical Wnt signaling

Non-canonical Wnt pathways operate independently of β-catenin stabilization.

They include mechanisms such as planar cell polarity (PCP) signaling and Wnt/Ca2+ signaling, which regulate cell polarity, migration, cytoskeletal organization, and intracellular calcium responses.

Together, these pathways contribute to tissue architecture and coordinated cellular behavior during development.

5. Molecular Crosstalk Between Signaling Pathways

Although PI3K/AKT, MAPK/ERK, JAK/STAT, and Wnt signaling are frequently described as separate pathways, their biological functions are closely interconnected.

Crosstalk occurs through shared regulatory proteins, phosphorylation events, transcriptional interactions, and feedback mechanisms.

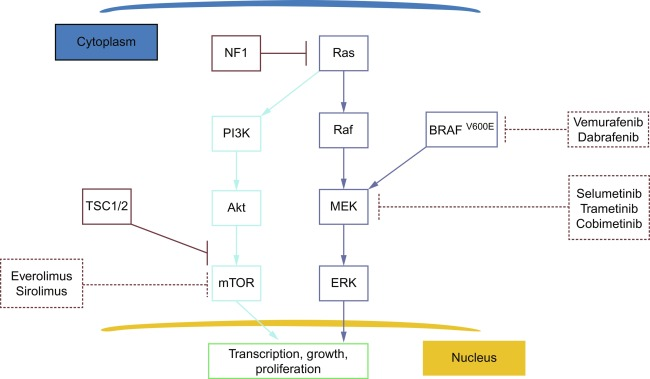

For example, receptor tyrosine kinases can activate both PI3K/AKT and MAPK/ERK signaling, allowing cells to coordinate metabolic responses with proliferation-related processes.

Interactions between Wnt/β-catenin and PI3K/AKT signaling can influence β-catenin stability and transcriptional regulation. Similarly, JAK/STAT activity may interact with MAPK signaling during cytokine-mediated cellular responses.

These interactions create complex regulatory networks rather than isolated molecular cascades.

The final cellular response depends on the integration of multiple signals, their temporal characteristics, and the molecular environment of each cell.

6. Signaling Pathways in Reproductive Biology

These signaling networks are particularly relevant to reproductive biology because reproductive tissues depend on precise coordination between cellular proliferation, differentiation, hormonal responses, and tissue remodeling.

PI3K/AKT signaling participates in the regulation of follicular development, cellular metabolism, and survival-related mechanisms.

MAPK/ERK contributes to cellular responses associated with gonadotropins, growth factors, and developmental regulation.

JAK/STAT signaling participates in cytokine-mediated communication and interactions between immune and reproductive cells.

Wnt signaling contributes to developmental organization, tissue differentiation, and the regulation of cellular identity.

Their combined activity illustrates how molecular communication supports the organization and physiological functioning of reproductive tissues.

7. Experimental Approaches for Investigating Signaling Networks

The investigation of intracellular signaling pathways requires complementary analytical techniques capable of examining molecular activation, protein interactions, and downstream biological responses.

Western blotting is frequently used to evaluate total and phosphorylated forms of signaling proteins, including AKT, ERK, STAT3, and β-catenin.

Immunofluorescence and confocal microscopy allow researchers to examine the cellular localization of signaling components, particularly nuclear translocation events.

Reverse transcription quantitative PCR (RT-qPCR) provides information about changes in the expression of genes regulated by specific signaling networks.

Reporter gene assays can also be used to investigate pathway activity. For example, TCF/LEF-based reporter systems help evaluate canonical Wnt/β-catenin signaling.

In addition, pharmacological inhibitors, genetic silencing, and CRISPR-based approaches can help investigate the functional contribution of individual pathway components.

Combining these methods provides a more comprehensive understanding of signaling activity and its biological consequences.

8. Emerging Research Perspectives

Modern research increasingly focuses on understanding signaling pathways as dynamic networks rather than independent molecular sequences.

Advanced imaging, phosphoproteomics, single-cell transcriptomics, and computational modeling are expanding the possibilities of studying pathway activation across different cellular populations.

These approaches can reveal variations in signaling responses, identify regulatory relationships, and clarify how cells integrate multiple environmental and intracellular signals.

Future investigations will continue to explore how signaling networks interact during development, tissue regeneration, immune regulation, and reproductive physiology.

Conclusion: Understanding the Networks Behind Cellular Behavior

PI3K/AKT, MAPK/ERK, JAK/STAT, and Wnt signaling represent four important molecular systems that regulate fundamental aspects of cellular physiology.

Their individual functions are distinct, but their interactions create interconnected networks responsible for translating extracellular information into coordinated biological responses.

From metabolic regulation and cell survival to developmental organization and reproductive physiology, these pathways demonstrate the importance of molecular communication in maintaining complex biological systems.

Exploring their mechanisms and interactions remains an essential direction in contemporary cellular and molecular research.
